Confederate Revolvers: Wheelguns of the Rebellion

By Joe Engesser

Share this post:

Unlike the industrialized North, the Confederacy had fewer factories, a scarce iron supply, and a decentralized manufacturing base. As a result, the Southern States faced a critical shortage of firearms and artillery throughout the Civil War.

A Confederate Dance & Brothers percussion revolver.

Trade with the South was restricted in the months leading up to the Civil War, and President Lincoln’s subsequent blockade slowed Confederate arms imports down to a trickle. This created a wealth of opportunity for any Southern manufacturer who could produce guns using the limited materials available. And given the prominence of Confederate cavalry early in the war, a steady supply of revolvers was in especially high demand.

Union Blockade

In the North, manufacturing giants like Colt, Remington, and Smith & Wesson produced the overwhelming number of Civil War revolvers, with Colt dominating by a substantial margin. Though the vast majority of Colt Model 1860 Army and 1851 Navy revolvers went to the Union, Samuel Colt sold guns to all parties until late April of 1861, when media outcry and accusations of Southern sympathies finally became too damaging to ignore.

A Colt Model 1860 Army revolver, shipped to New Orleans on April 9, 1861, only three days before the Confederates attacked Fort Sumter.

With smugglers and blockade runners unable to meet Confederate wartime demand, a number of small workshops, factories, and even individual gunsmiths throughout the South stepped up to the challenge. Some shortcuts were inevitable though, and one solution Confederate gun makers embraced was to ignore patent law and reproduce existing designs from Northern arms manufacturers.

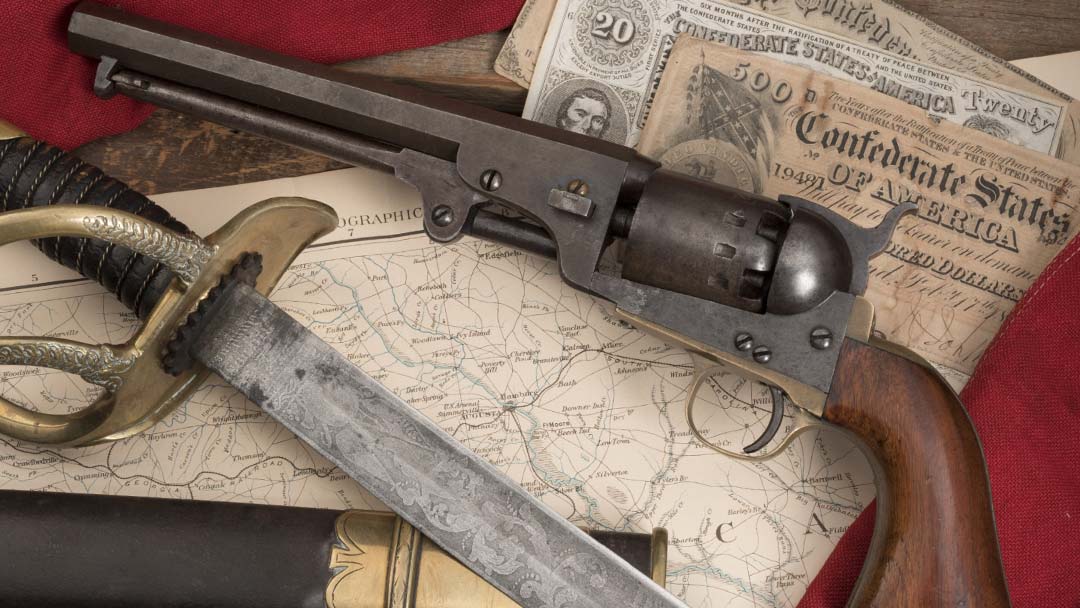

A Colt Model 1851 Navy style revolver manufactured by Augusta Machine Works.

More than strict reproductions, Confederate revolvers have a distinct style and personality that’s immediately evident to any fan of antique wheelguns. Shortages of iron and graded steel led to brass pistol frames and other brass componentry. Smaller-scale manufacturing practices and rapid production often resulted in slight mechanical differences between guns of the same model. Due to their history and extreme rarity, surviving Confederate revolvers are some of the most sought-after treasures in arms collecting today.

The Griswold Revolver

The largest number of Confederate revolvers came from a firm run by Samuel Griswold and Arvin Gunnison out of Griswoldville, Georgia. Griswold & Gunnison produced approximately 3,700 revolvers, making them the most prolific Confederate handgun manufacturer during the Civil War. Perhaps the most well-known type of Confederate revolver model, the Griswold was patterned off of the Colt Model 1851 Navy and features a brass frame, trigger guard, and back strap.

This first model Griswold & Gunnison revolver, serial number 1123, was manufactured in Griswoldville, Jones County, Georgia (near Macon) circa May, 1863.

According to the book, ‘Confederate Presentation & Inscribed Swords & Revolvers,’ the Griswold & Gunnison revolver on offer from Rock Island Auction Company this May belonged to a private from Tuscaloosa, Alabama named John A. Morris. Private Morris joined Company G 1st Regiment Mississippi Partisan Rangers on September 1, 1862, which became Company E 7th Mississippi Cavalry later in the war.

This Griswold revolver is pictured in the book 'Civil War Relics from Georgia' by David and Celeste Topper.

Private John A. Morris carried this revolver until his surrender at Holly Springs, Mississippi, on May 4th, 1865, an impressive history for an already rare collector’s piece. Included with this Griswold & Gunnison revolver are letters of provenance, a copy of one of Morris’ military identification cards, and a Mississippi Department of Archives soldier search paper with John A. Morris listed as “Co. E, First Partisan Reg't.”

This specific revolver was carried during the Civil War by Private John A. Morris, Company E, 7th Mississippi Cavalry, CSA.

Dance & Brothers Revolver

The exact number of Confederate Dragoon style revolvers manufactured by J.H. Dance & Brothers of Columbia, Texas, is unclear. According to ‘Confederate Handguns,’ by Albaugh, Benet, and Simmons, the highest known serial numbered Dance & Brothers .44 caliber revolver is 324, making these revolvers one of the scarcest Confederate models produced.

This exact revolver, serial number 317, is pictured and described in Gary Wiggins' book ‘Dance & Brothers, Texas Gunmakers of the Confederacy’ on pages 98-99.

The Dance & Brothers revolver featured in Rock Island Auction Company’s May Premier is pictured and described in Daniel D. Hartzler's book, ‘Confederate Presentation & Inscribed Swords & Revolvers’ on pages 260-261. The revolver is believed to have belonged to Private Michael C. Bell, who enlisted on July 6, 1863, at Brenham, Texas, and served in F Company 23rd Brigade of the Texas State Troops. The 23rd Brigade fought in the Western Theatre, including in Louisiana during the Red River Campaign.

Exceptionally rare Civil War Confederate Dance & Brothers revolver attributed to Private Bell of the 23rd Brigade of Texas Cavalry.

In the final year of the war, Bell’s company dismounted and eventually surrendered as part of General Edmund Kirby Smith's forces on May 26, 1865. Since Bell was listed as on sick leave during this period, he would not have been present at the surrender and likely received this Dance & Brothers revolver during his leave. A stroke of good luck for Civil War gun collectors, since the revolver’s late issue date likely explains how it has survived in such remarkable condition for a Confederate sidearm.

Augusta Machine Works Revolver

The distinctive Augusta Machine Works Confederate revolvers were manufactured between 1861-1864, with fewer than 100 produced. Based on Samuel Colt's Model 1851 Navy, many Civil War collectors consider the Augusta Machine Works revolver to be the finest sidearm manufactured by the Confederates.

Civil War collectors have long admired the craftsmanship of the Augusta Machine Works .36 caliber iron frame revolvers.

Though Augusta Machine Works is thought to be the likely producer of these rare revolvers, the pistols are not marked with a maker's name. The Confederate Government owned a factory in Augusta, Georgia, known as the Augusta Machine Works, and the Augusta origin hypothesis, established in 1963 by authors William A. Albaugh, Hugh Benet, Jr., and Edward N. Simmons, is generally well regarded.

Augusta Machine Works revolvers were manufactured in either six or 12 stop cylinders. Six stop cylinder variations are the rarer of the two, like this example offered by Rock Island Auction Company in May.

Augusta Machine Works revolvers are distinctive next to all other Confederate pistols due to the shape of their squared off grip frame, their 7 ¾ inch barrel length, and their close tolerance fit and finish. All numbers and letters found on Augusta Machine Works revolvers are not visible until the gun is disassembled and are usually of a single character, meaning these markings were likely intended more for the assembly process than for serial purposes.

Spiller & Burr Revolver

In 1861, Lt. Col. James H. Burton, Edward N. Spiller, and David J. Burr launched a factory in Richmond, Virginia in an attempt to manufacture revolvers for the Confederacy. A short time later they relocated to Atlanta, Georgia. Production started with an optimistic government contract of about 1,500 revolvers in 1862, but operation was halted in November 1864 due to Sherman's March to the Sea.

Documented Civil War Confederate Spiller & Burr percussion revolver.

Edward Spiller was aiming for a rugged yet easy to produce design, and he selected the Whitney Arms Company Navy as the basis for the Spiller & Burr revolver. The primary differences are observed in the Spiller & Burr’s distinctive solid brass frame and the revolver’s cylinder composition, with Spiller & Burr opting to use iron cylinders rather than steel, as fine quality steel was in scarce supply.

This exact revolver is pictured and described in ‘Spiller & Burr Revolvers: Chronology of Manufactory’ by John Sexton.

The Spiller and Burr example included in May’s auction lineup features several intriguing stamps and markings that hint to the gun’s rich history, including five kill notches carved into the butt of the revolver. A sidearm that saw some action in the field, no doubt, like most Confederate revolvers of its kind.

The Leech and Rigdon Revolver

In 1861, Thomas Leech established the ‘Memphis Novelty Works’ with scale maker Charles Rigdon in Memphis, Tennessee, and began crafting Confederate cavalry swords. Sword production was interrupted after the following year when Union forces closed in on the city, forcing Leech and Rigdon to relocate their operation to Columbus, Mississippi, and then to Greensboro, Georgia, where Charles Rigdon shifted his attention to producing Confederate revolvers.

A Civil War Confederate Leech & Rigdon percussion revolver.

Among the most highly sought-after Confederate firearms, only 1,500 Leech & Rigdon revolvers were manufactured between 1863 and 1864. The Leech & Rigdon revolver design is another close copy of the Colt Navy Model, though with a distinct round barrel with an octagonal top barrel housing similar to the Colt Dragoon.

This Leech & Rigdon revolver includes a letter of examination from Frederick R. Edmunds, former Curator of the Confederate States Armory & Museum.

On December 13, 1863, Thomas Leech abruptly withdrew from the company. Why the venture ended is unclear, but Charles Rigdon quickly found new business partners and announced the formation of “Rigdon, Ansley & Co” in Augusta, GA, and continued to manufacture an updated variation of these fascinating revolvers.

Rigdon, Ansley and Company Revolver

When the transition occurred between Leech & Rigdon to the Rigdon, Ansley & Co. revolvers, several small design improvements were made that today help collectors to differentiate between the two.

This rare Confederate Rigdon, Ansley & Co. Model 1851 Navy style revolver has a 12-stop cylinder that has been period modified with half of the original rectangular stops neatly ground down and a 7 ½ inch part round/part octagon Dragoon style barrel.

First, Leech & Rigdon revolvers used a standard six cylinder stops, no cap channel in the face of the recoil shield, and a loading lever retained by a “pin and ball loading lever latch” (think ball detent). On the other hand, the subsequent revolvers made by Charles Rigdon and Jesse A. Ansley from 1864-65, utilized 12 cylinder stops (so they could be carried with all 6 chambers loaded), included a cap channel in the face of the recoil shield, and used a loading lever retention latch similar to those found on the Colt 1851 Navy.

One of only two known unmarked and unserialized Rigdon, Ansley & Co revolvers.

Like other Confederate revolver types, Rigdon, Ansley & Co. revolvers have slight mechanical differences that vary between each of the nearly 1,000 guns produced. These discrepancies were likely due to the scarcity of materials and skilled labor shortages that plagued the South throughout the war, making standardization immensely difficult.

LeMat Revolvers

The LeMat revolver is one of the most distinctive Confederate pistols thanks to its unusual central smoothbore “grape shot” barrel. This fascinating firearm was carried by numerous Southern military generals and officers such as P. G. T. Beauregard, Braxton Bragg, and J. E. B. Stuart.

Confederate General Braxton Bragg’s LeMat revolver realized an incredible $103,500 during Rock Island Auction Company's December 2021 Premier Firearms Auction.

Designed by Dr. Jean Alexandre LeMat of New Orleans, these unique revolvers were primarily produced in Liege, Belgium, and Paris, France, and smuggled into the South during the Civil War. Period advertisements for the revolvers refer to them as “LeMat's Grape Shot Revolvers.”

Desirable Civil War era Parisian First Model LeMat grape shot revolver.

LeMat continued to pursue and alter his designs in the post-war era. The LeMat pinfire revolver was sold primarily in Europe, and LeMat introduced a centerfire variation of the design in the late 1860s that included a LeMat revolving carbine and the smaller “Baby LeMat” revolver.

LeMat’s centerfire revolver design was modified multiple times in the two decades following the Civil War, and the example offered in RIAC’s May Premier Auction is similar to the design shown in the 1871 French patent extension. Like their famous percussion predecessors, these centerfire LeMat revolvers have a combination of a rifled barrel fed by a revolving cylinder and a central shot barrel.

Scarce LeMat centerfire single action grape shot revolver.

Civil War Revolvers

Another popular Civil War revolver, the Colt Model 1851 Navy was widely issued to Union soldiers, as well as privately purchased. A personal favorite of Samuel Colt, the sturdy sixgun's impressive production numbers, widespread use on the American frontier, and status as the favored revolver for Western legends like Wild Bill Hickok, Buffalo Bill Cody, and countless early gunslingers has made this iconic Civil War revolver a desirable collector's gun today.

This outstanding "finest known" U.S. Army Colt Model 1851 Navy revolver is rated in excellent plus, as issued condition, about as near to mint as possible for a military contract revolver from more than a century and a half ago.

As mentioned earlier, the Colt 1860 Army revolver was the most widely used Civil War revolver. More than 200,000 units were manufactured between 1860 and 1871 with the United States government purchasing nearly half of all models produced. Another definitive feature of the revolver was the front and rear sights which granted the user full view when the gun was fully cocked. The Model 1860 Army was a beefed-up version of the Model 1851 Navy, with bigger grips, a rounder look, and a more powerful caliber compared to its .36 caliber sibling.

Lt. Ducat Presentation Engraved Colt Model 1860 Army, a Civil War revolver that sold in December of 2020 for $103,500.

Though produced in only a fraction of the number of its Army counterpart, the Colt 1861 Navy was still a prevalent Civil War revolver. Out of the original 38,864 Colt 1861 Navy revolvers produced, it is estimated that only about 2.9% of those still remain today. Much like their Army equivalent, 1861 Navy revolvers are an incredibly valuable Civil War revolver because of their low survivability rate connected thanks to their hazardous occupational use in the past.

U.S. Contract Colt Model 1861 Navy, a Civil War revolver that sold in April of 2020 for $218,500.

From 1863 to 1865, the Starr Arms Co. of New York City produced 46,000 Civil War revolvers for the U.S. Ordnance Department. 25,000 Starr Arms Co. Model 1863 Army single action revolvers were manufactured as part of the Civil War contract along with 21,000 Starr Arms Co. Model 1858 Army double action revolvers. Both models saw hard use throughout the Civil War, and high-condition survivors like the example below are few and far between.

A Civil War revolver classic, this outstanding U.S. Starr Model 1863 single action percussion revolver rig with its holster belt, bullet mold, and cartridge pack is in exceptional condition and will be nearly impossible to improve upon.

Buying and Selling a Confederate Revolver

While Griswold & Gunnison, the largest producer of Confederate revolvers, was able to make around 3,700 pistols between 1862 and 1864, Colt delivered 127,000 Colt Model 1860 Army revolvers to the Union throughout the war. Though the North’s industrial advantage proved impossible to overcome, that didn’t stop some entrepreneurial Southern arms makers from trying.

Rock Island Auction Company offers a variety of Confederate revolvers and other Civil War guns for sale.

Any Southern-made Confederate revolver is a true rarity today, and Rock Island Auction Company has become the premiere destination to find these antique treasures. When it comes to experimentation, innovation, and the sheer number of weapon types fielded, it’s hard to match the Civil War era. Most firearms from the period have a rich history to share, so subscribe to the weekly Rock Island Auction newsletter to receive new gun blogs and gun videos that dive deeper into Civil War guns like the Henry rifle, the Gatling gun, the Starr carbine, and more.

Civil-War Robert Adams Beaumont Adams DA percussion revolver presented to Virginia Tobacco Tycoon William Cameron by Captain F.W. Fuller of the Blockade Runner City of Petersburg.

SOURCES:

Bill Gary, Confederate Revolvers

David and Celeste Topper, Civil War Relics from Georgia

William A. Albaugh, Hugh Benet, Jr., & Edward N. Simmons, Confederate Handguns

Daniel. Hartzler, Confederate Presentation & Inscribed Swords & Revolvers
